Plot power spectrum of experimental data

import numpy as np
import matplotlib.pylab as p

# u = np.loadtxt('data/data_for_FFT.txt')
data = np.loadtxt('data/p40_20.ts')
# data source:
# http://ldvproc.nambis.de/data/ektdata.html

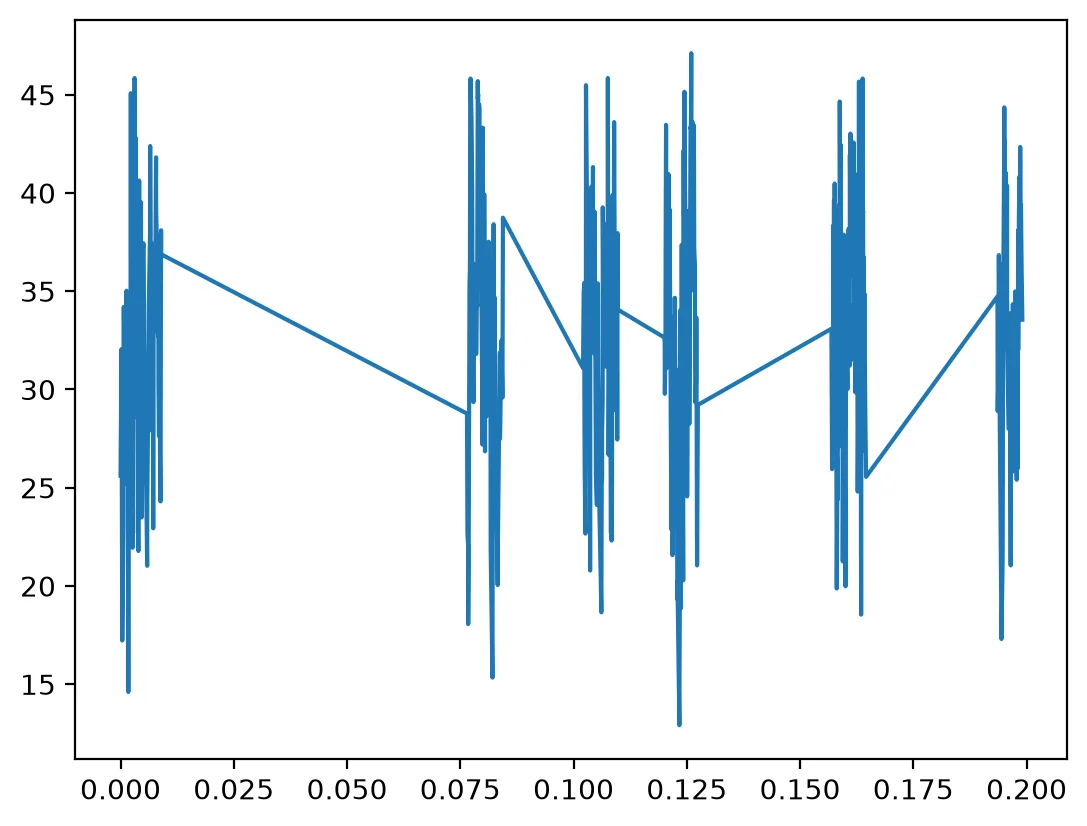

p.plot(data[:500,0],data[:500,1])

p.hist(data[:,1],101,density=True);

u = data[:,1]

meanu = u.mean()
uf = u - meanu

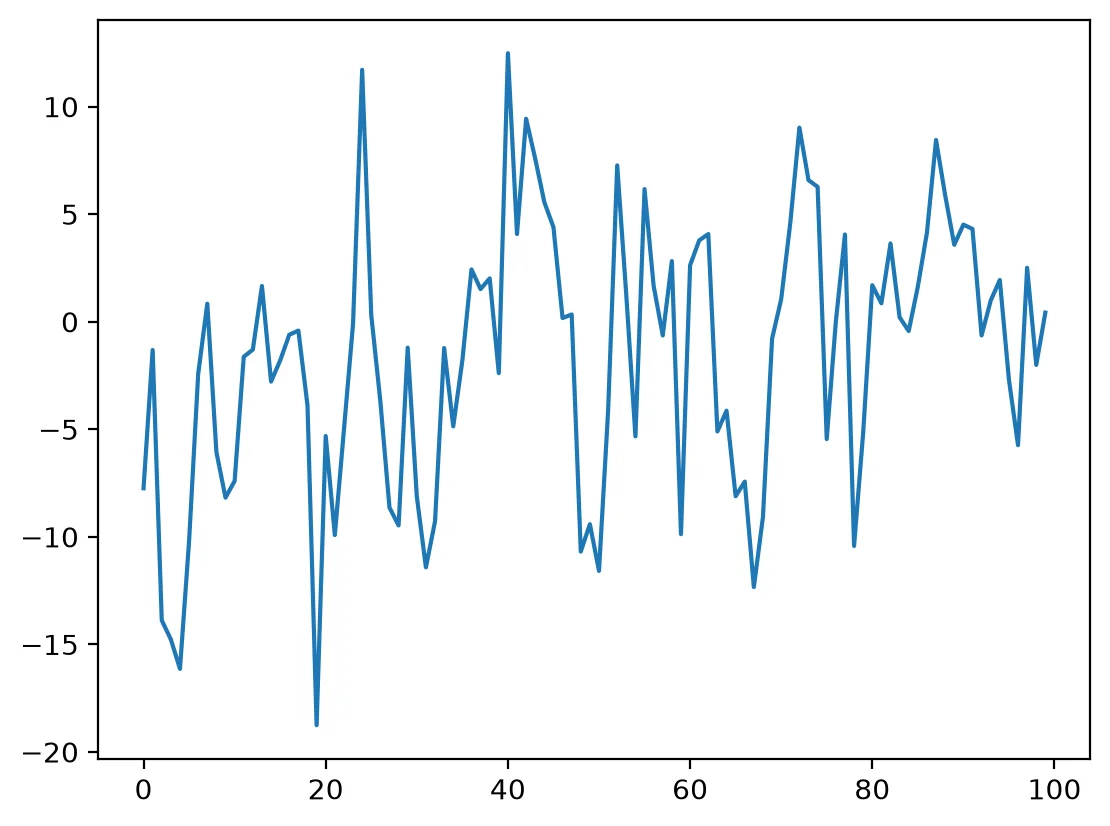

p.plot(uf[:100])

def powerspectrum(x):
    s = np.fft.fft(x)
    return np.real(s*np.conjugate(s))

specu = powerspectrum(uf)
lenu, = specu.shape

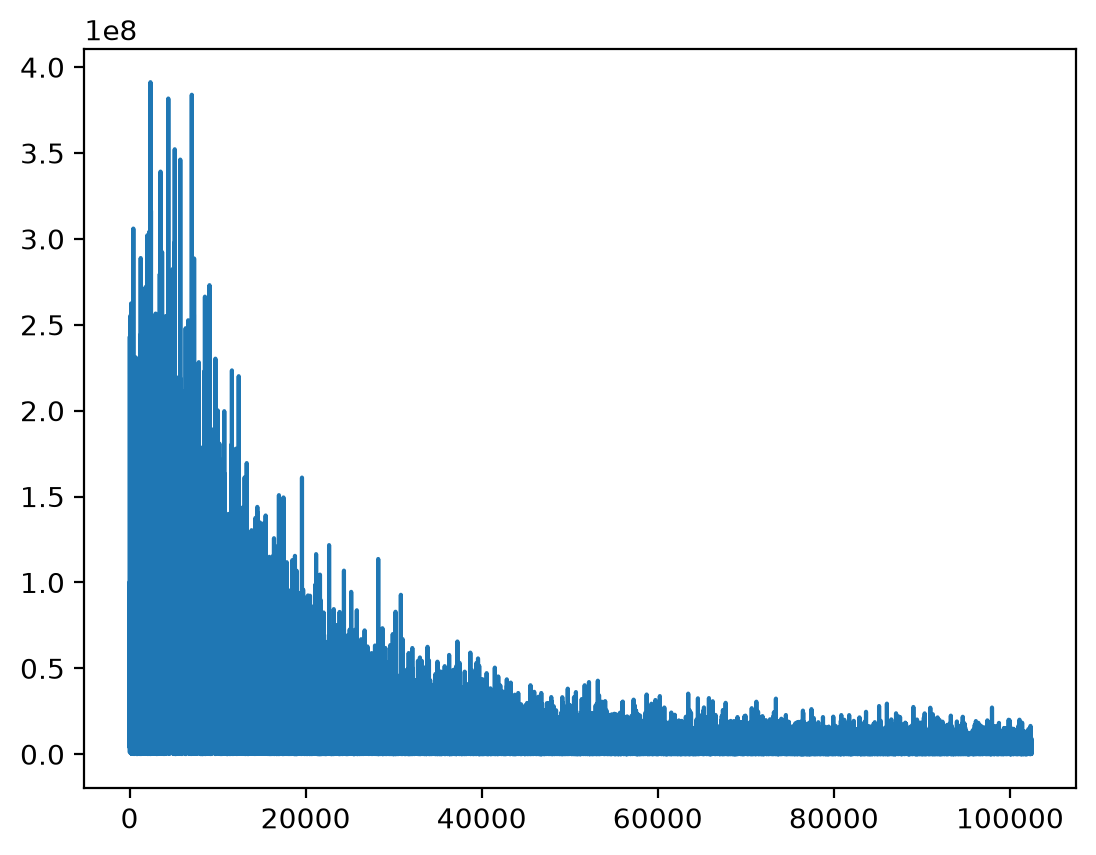

p.plot(specu[2:int(lenu/2)])
