Sensitivity estimate example¶
import pylab as pl
from scipy.stats import t
import numpy as np
def linreg(X, Y):
"""
Summary
Linear regression of y = ax + b
Usage
real, real, real = linreg(list, list)
Returns coefficients to the regression line "y=ax+b" from x[] and y[], and R^2 Value
"""
N = len(X)
if N != len(Y): raise(ValueError, 'unequal length')
Sx = Sy = Sxx = Syy = Sxy = 0.0
for x, y in zip(X, Y):
Sx = Sx + x
Sy = Sy + y
Sxx = Sxx + x*x
Syy = Syy + y*y
Sxy = Sxy + x*y
det = Sx * Sx - Sxx * N # see the lecture
a,b = (Sy * Sx - Sxy * N)/det, (Sx * Sxy - Sxx * Sy)/det
meanerror = residual = residualx = 0.0
for x, y in zip(X, Y):
meanerror = meanerror + (y - Sy/N)**2
residual = residual + (y - a * x - b)**2
residualx = residualx + (x - Sx/N)**2
RR = 1 - residual/meanerror
# linear regression, a_0, a_1 => m = 1
m = 1
nu = N - (m+1)
sxy = np.sqrt(residual / nu)
# Var_a, Var_b = ss * N / det, ss * Sxx / det
Sa = sxy * np.sqrt(1/residualx)
Sb = sxy * np.sqrt(Sxx/(N*residualx))
# We work with t-distribution, ()
# t_{nu;\alpha/2} = t_{3,95} = 3.18
tvalue = t.ppf(1-(1-0.95)/2, nu)
print("Estimate: y = ax + b")
print("N = %d" % N)
print("Degrees of freedom $\\nu$ = %d " % nu)
print("a = %.2f $\\pm$ %.3f" % (a, tvalue*Sa/np.sqrt(N)))
print("b = %.2f $\\pm$ %.3f" % (b, tvalue*Sb/np.sqrt(N)))
print("R^2 = %.3f" % RR)
print("Syx = %.3f" % sxy)
print("y = %.2f x + %.2f $\\pm$ %.3f V" % (a, b, tvalue*sxy/np.sqrt(N)))
return a, b, RR, sxy

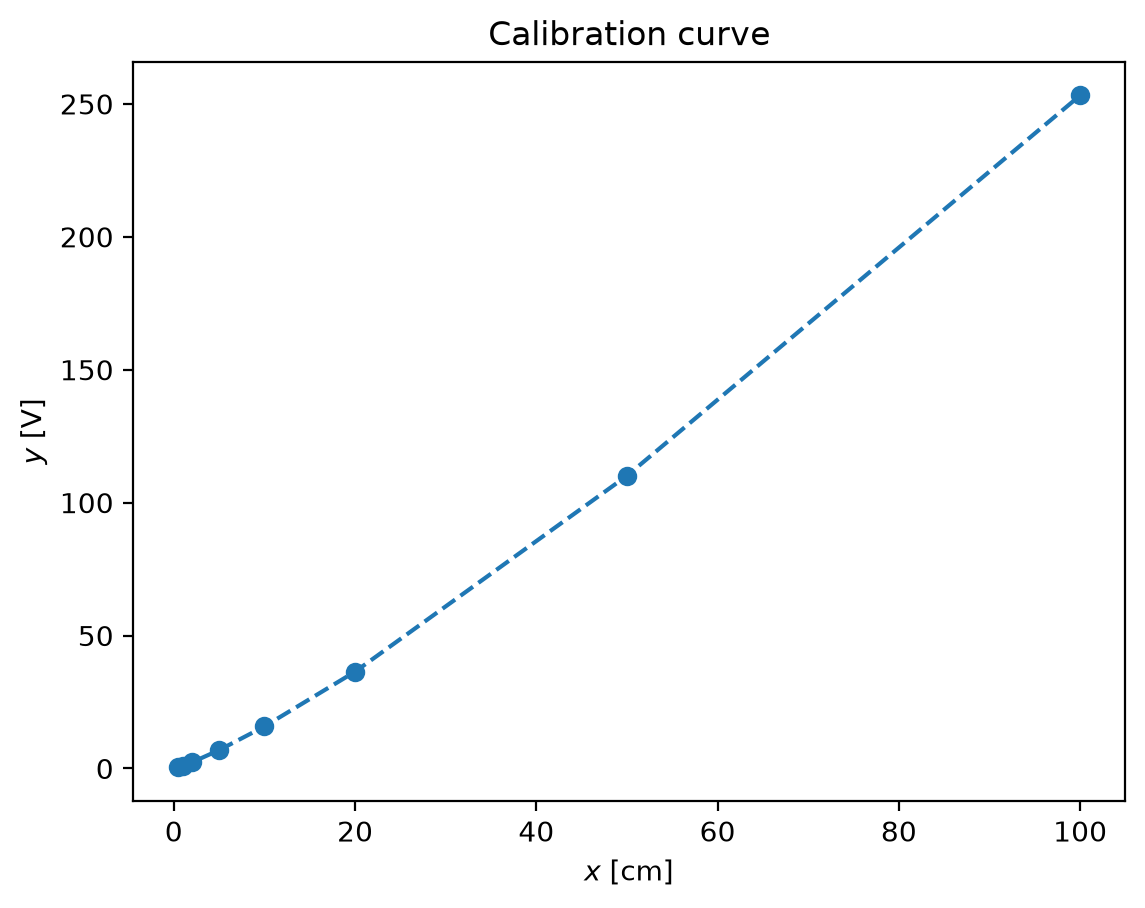

x = np.array([0.5, 1.0, 2.0, 5.0, 10.0, 20.0, 50.0, 100.0])
y = np.array([0.4, 1.0, 2.3, 6.9, 15.8, 36.4, 110.1, 253.2])

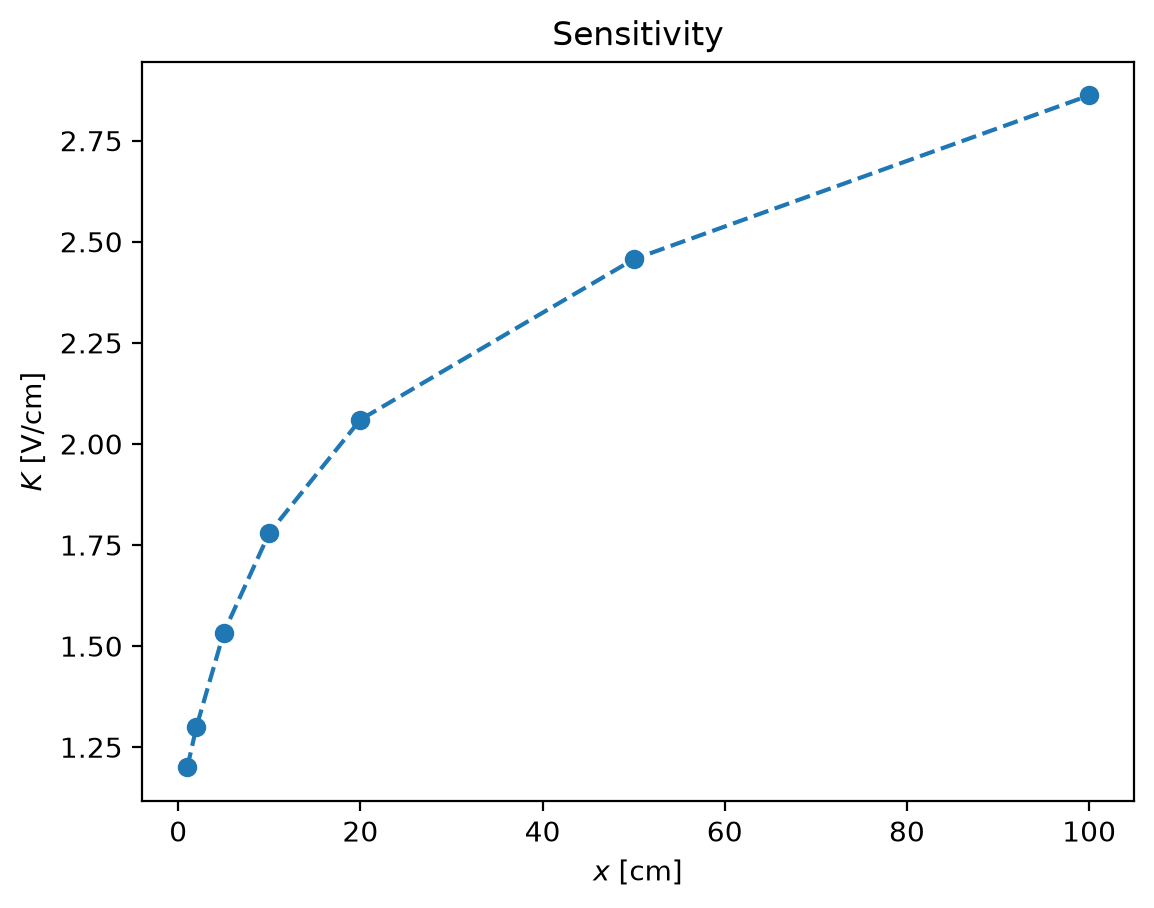

Sensitivity, \(K\) is:
$ K_i = \left( \frac{\partial y}{\partial x} \right)_{x_i} $
[1.2 1.3 1.53333333 1.78 2.06 2.45666667 2.862 ]

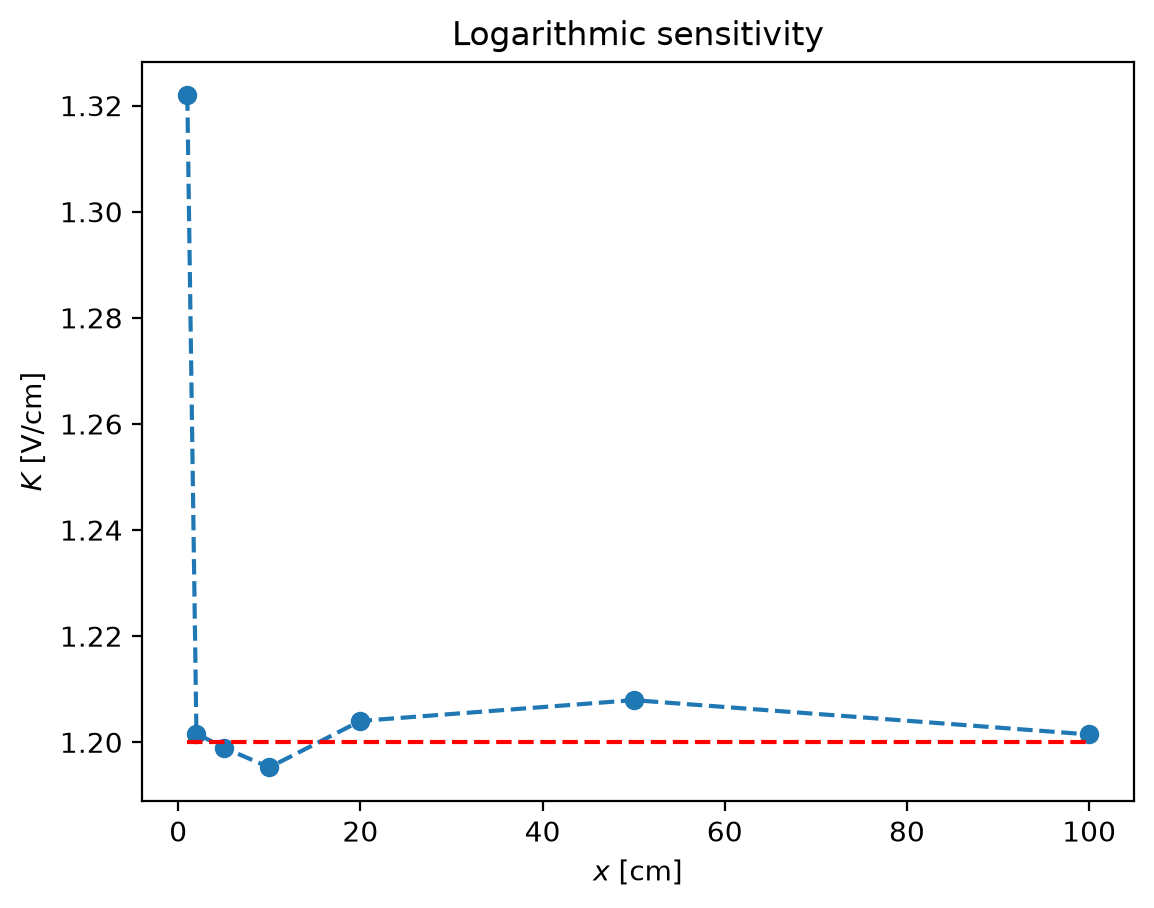

Instead of working with non-linear curve of sensitivity we can use the usual trick: the logarithmic scale
logK = np.diff(np.log10(y))/np.diff(np.log10(x))
print( logK)
pl.plot(x[1:],logK,'--o')
pl.xlabel('$x$ [cm]')
pl.ylabel('$K$ [V/cm]')
pl.title('Logarithmic sensitivity')
pl.plot([x[1],x[-1]],[1.2,1.2],'r--')
[1.32192809 1.20163386 1.19897785 1.19525629 1.20401389 1.20793568 1.20146294]

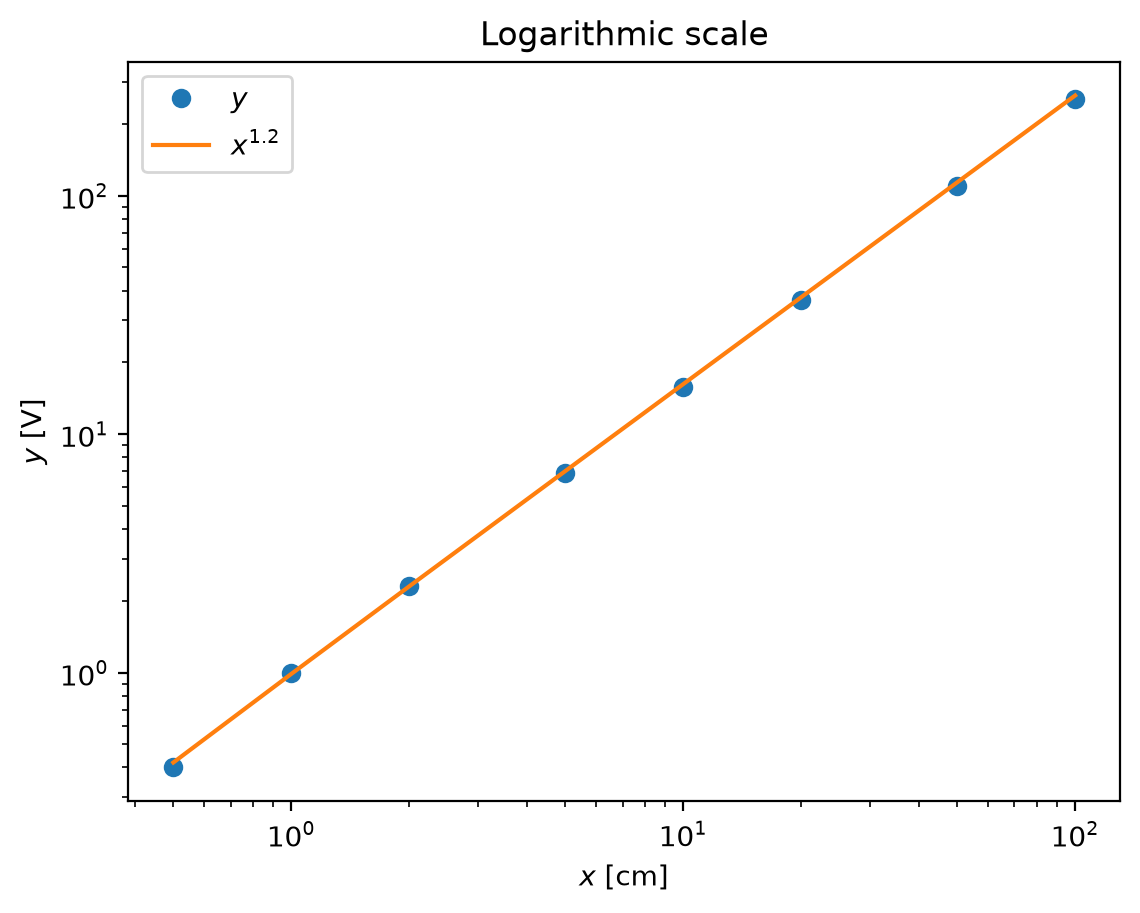

pl.loglog(x,y,'o',x,x**(1.2))
pl.xlabel('$x$ [cm]')
pl.ylabel('$y$ [V]')
pl.title('Logarithmic scale')
pl.legend(('$y$','$x^{1.2}$'),loc='best')

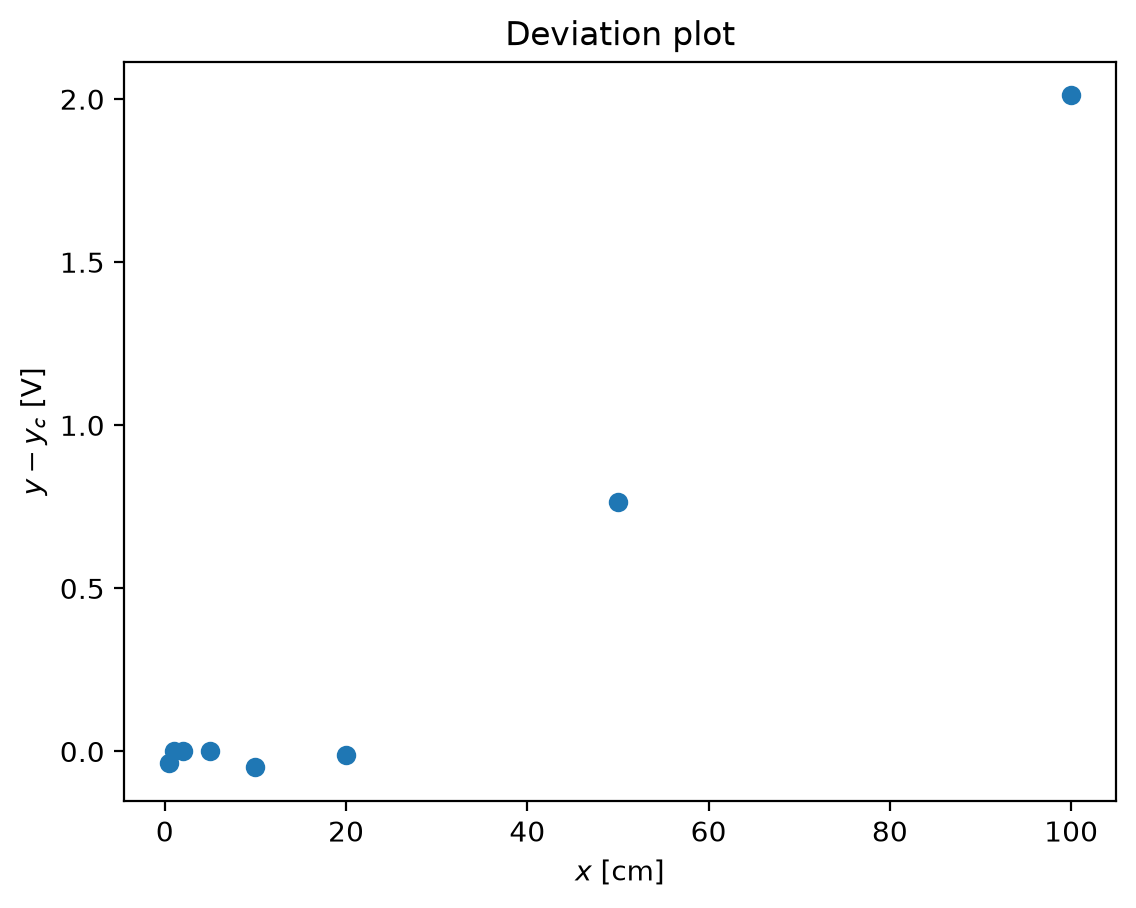

pl.plot(x,y-x**(1.2),'o')
pl.xlabel('$x$ [cm]')
pl.ylabel('$y - y_c$ [V]')
pl.title('Deviation plot')
# pl.legend(('$y$','$x^{1.2}$'),loc='best')
Regression analysis¶
Following the recipe of http://www.answermysearches.com/how-to-do-a-simple-linear-regression-in-python/124/
Estimate: y = ax + b N = 8 Degrees of freedom $\nu$ = 6 a = 1.21 $\pm$ 0.005 b = -0.01 $\pm$ 0.005 R^2 = 1.000 Syx = 0.011 y = 1.21 x + -0.01 $\pm$ 0.010 V (np.float64(1.2103157469888082), np.float64(-0.012527809481276199), np.float64(0.9998888247342179), np.float64(0.011222369359282008))

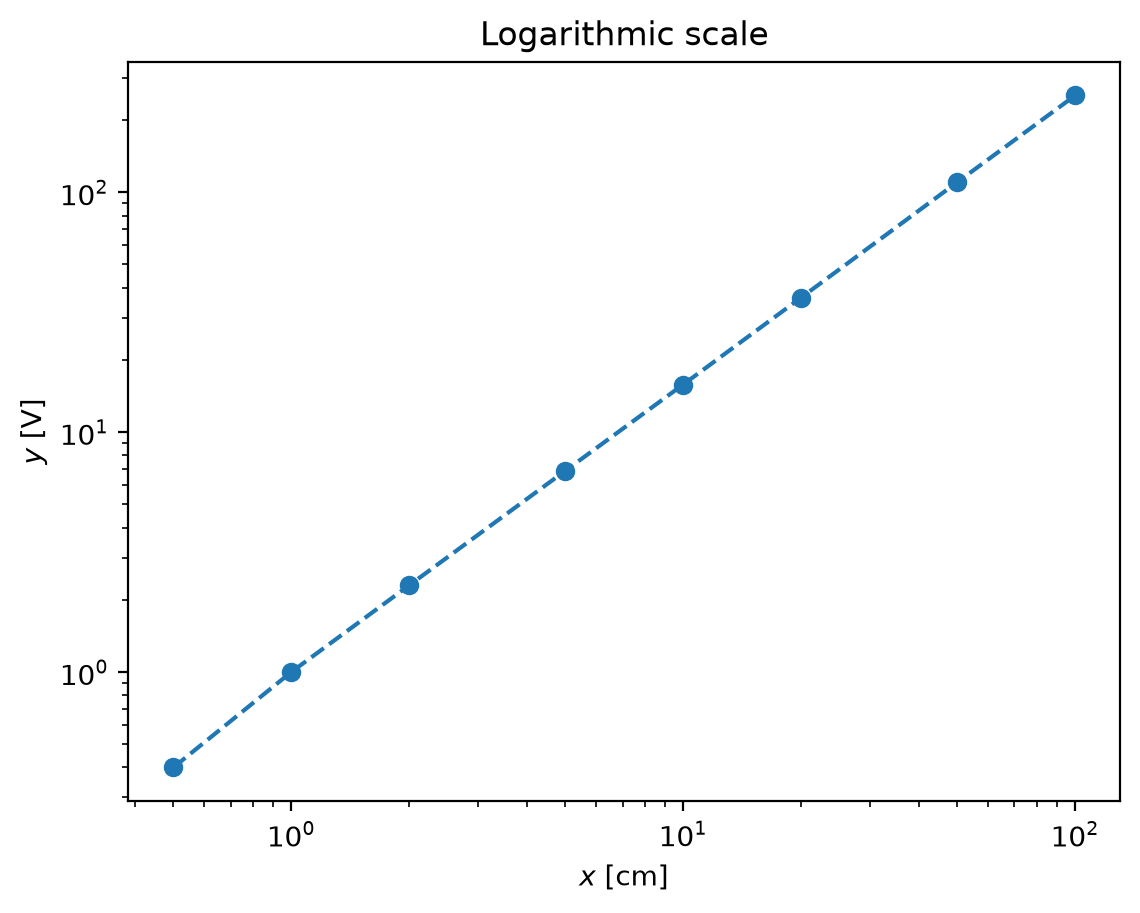

pl.loglog(x,y,'o',x,x**(1.21)-0.01252)
pl.xlabel('$x$ [cm]')
pl.ylabel('$y$ [V]')
pl.title('Logarithmic scale')
pl.legend(('$y$','$x^{1.2}$'),loc='best')
