Hysteresis example¶
Given calibration of an instrument for an increasing and decreasing input \(x\) [mV] and output of the instrument \(y\) [mV]
x = np.array([0.0, 1.0, 2.0, 3.0, 4.0, 5.0, 5.0, 4.0, 3.0, 2.0, 1.0, 0.0])
y = np.array([0.1, 1.1, 2.1, 3.0, 4.1, 5.0, 5.0, 4.2, 3.2, 2.2, 1.2, 0.2])
- We see the error, but we do not know if it is a random or not

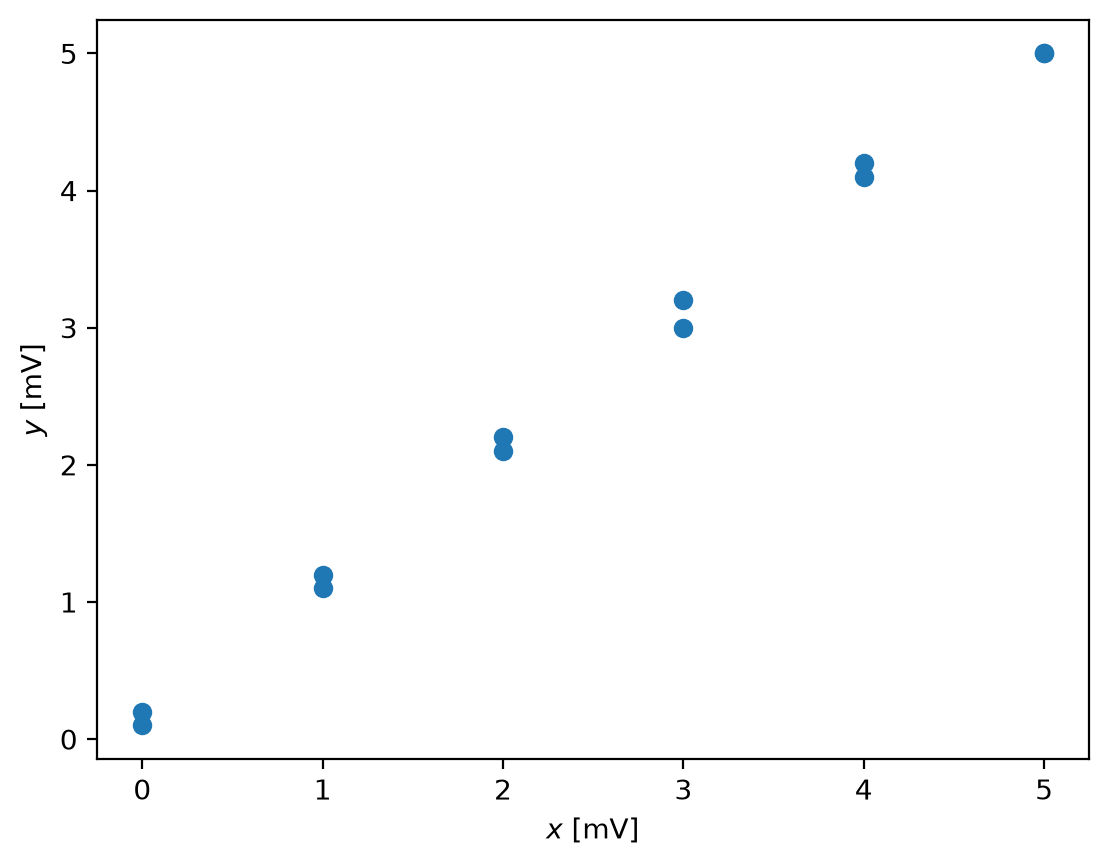

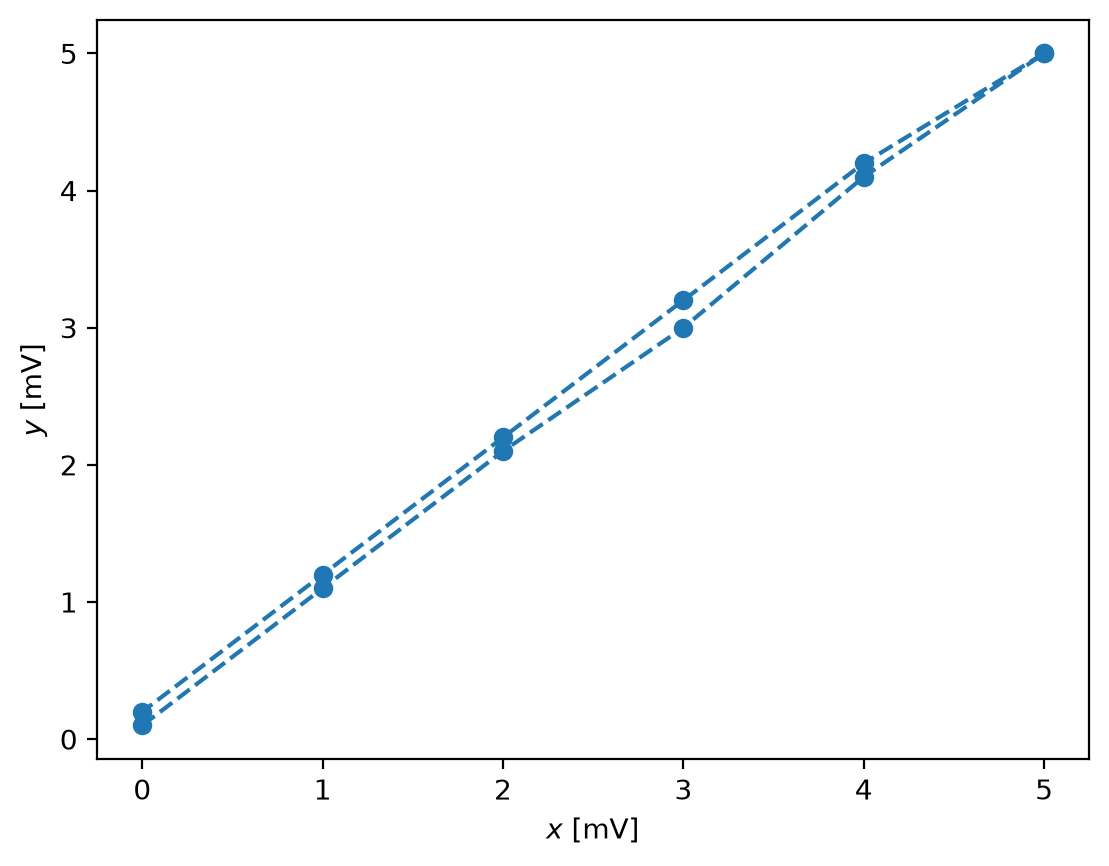

- In order to see the hysteresis, we have to set the plot with the lines connecting points:
Estimate the hysteresis error:¶
\(e_h = y_{up} - y_{down}\)
\(e_{h_{max}} = max(|e_h|)\)
$e_{h_{max}}\% = 100\% \cdot \frac{e_{h_{max}}}{y_{max}-y_{min}} $
e_h = [-0.1 -0.1 -0.1 -0.2 -0.1 0. ] [mV]
e_hmax= 0.20 [mV]
e_hmax_p = 100*e_hmax/(np.max(y) - np.min(y))
print("Relative error = %3.2f%s FSO" % (e_hmax_p,"%"))
Relative error = 4.08% FSO
Sensitivity error example¶
x_1 = np.array([0.5, 1.0, 2.0, 5.0, 10.0, 20.0, 50.0, 100.0])
y_1 = np.array([0.4, 1.0, 2.3, 6.9, 15.8, 36.4, 110.1, 253.2])
Sensitivity, \(K\) is:
$ K_i = \left( \frac{\partial y}{\partial x} \right)_{x_i} $
K=[1.2 1.3 1.53333333 1.78 2.06 2.45666667 2.862 ]
Instead of working with non-linear curve of sensitivity we can use the usual trick: the logarithmic scale
logK = np.diff(np.log(y_1)) / np.diff(np.log(x_1))
print(f'$\\log(K)$ = {logK}')
pl.plot(x_1[1:], logK, '--o')
pl.xlabel('$x$ [cm]')
pl.ylabel('$K$ [V/cm]')
pl.title('Logarithmic sensitivity')
# pl.hold(True)
pl.plot([x_1[1], x_1[-1]], [1.2, 1.2], 'r--')
$\log(K)$ = [1.32192809 1.20163386 1.19897785 1.19525629 1.20401389 1.20793568 1.20146294]
pl.loglog(x_1, y_1, 'o', x_1, x_1 ** 1.2)
pl.xlabel('$x$ [cm]')
pl.ylabel('$y$ [V]')

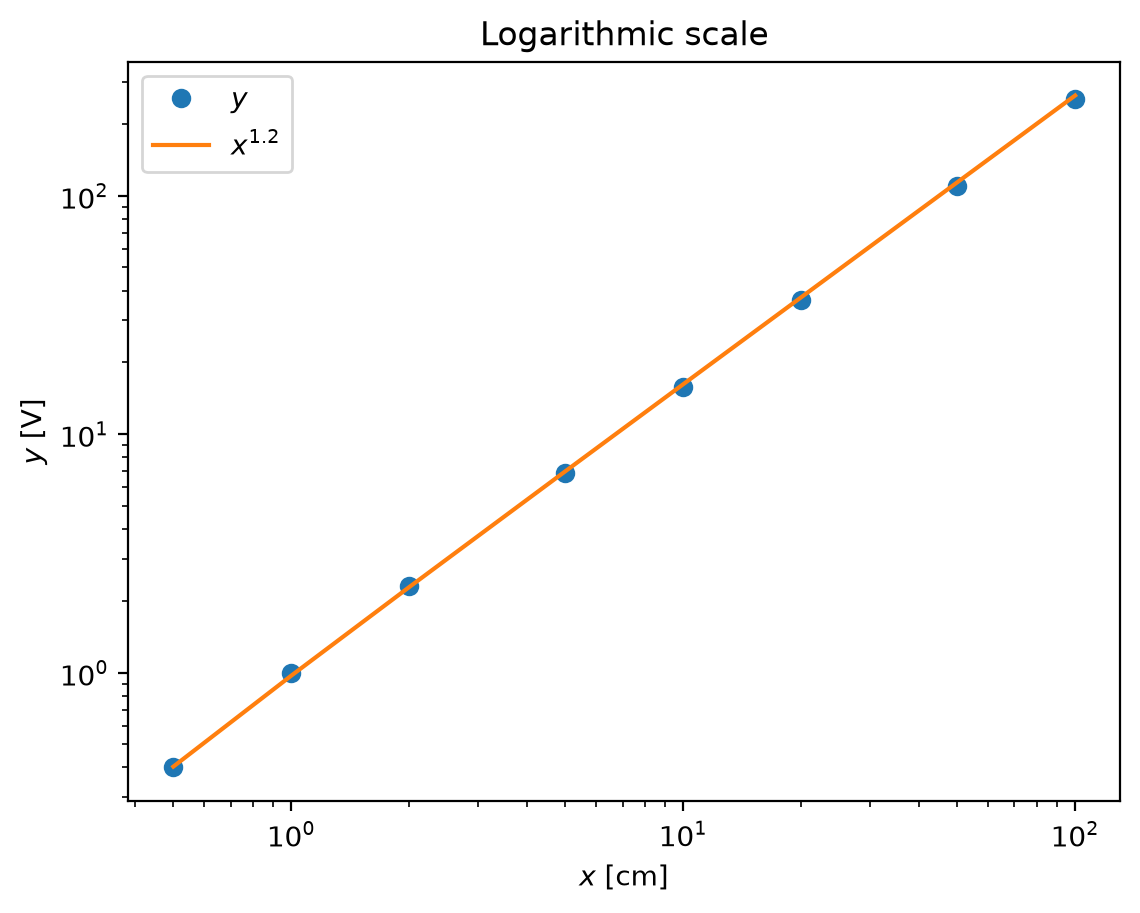

pl.title('Logarithmic scale')
pl.legend(('$y$', '$x^{1.2}$'), loc='best')
pl.plot(x_1, y_1 - x_1 ** 1.2, 'o')
pl.xlabel('$x$ [cm]')
pl.ylabel('$y - y_c$ [V]')
# pl.legend(('$y$','$x^{1.2}$'),loc='best')

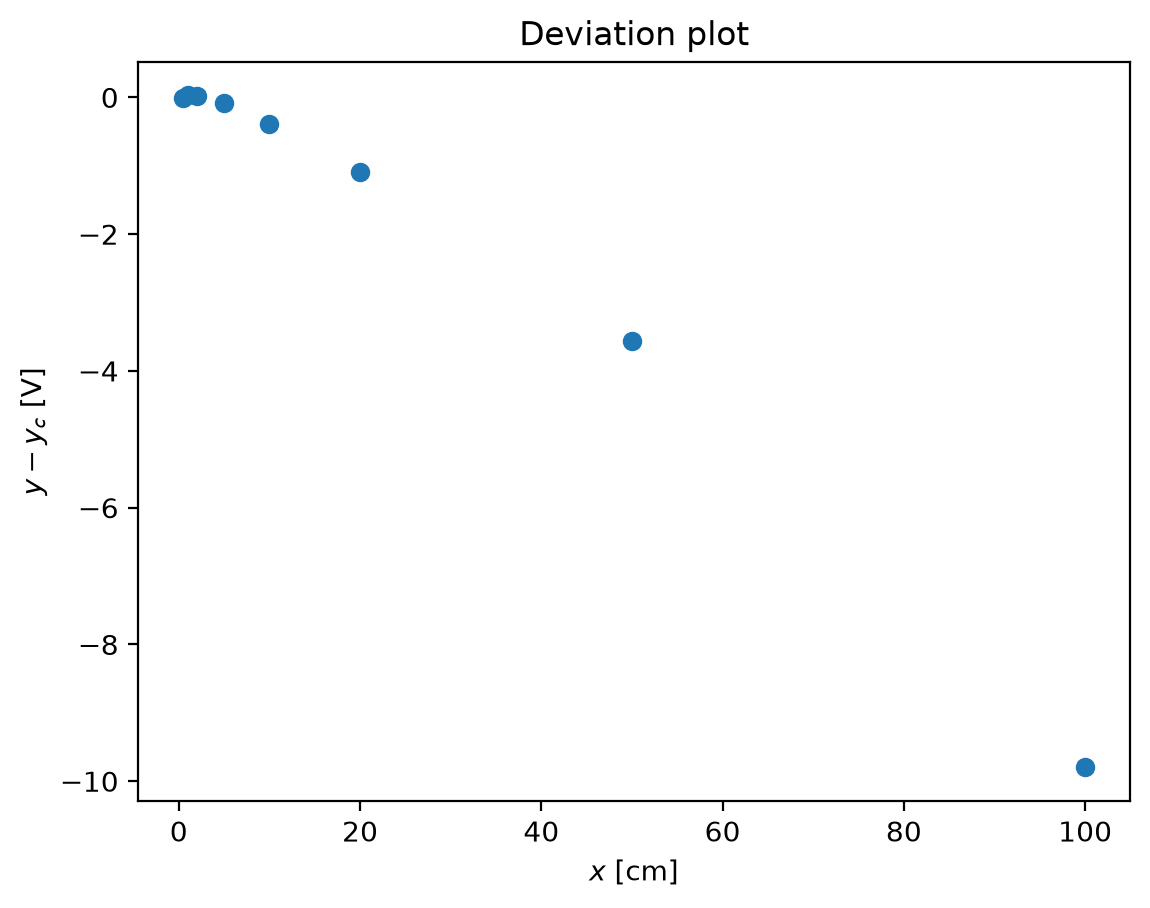

pl.title('Deviation plot')
Regression analysis¶
Following the recipe of http://www.answermysearches.com/how-to-do-a-simple-linear-regression-in-python/124/
from scipy.stats import t
def linreg(X, Y):
"""
Summary
Linear regression of y = ax + b
Usage
real, real, real = linreg(list, list)
Returns coefficients to the regression line "y=ax+b" from x[] and y[], and R^2 Value
"""
N = len(X)
if N != len(Y): raise(ValueError, 'unequal length')
Sx = Sy = Sxx = Syy = Sxy = 0.0
for x, y in zip(X, Y):
Sx = Sx + x
Sy = Sy + y
Sxx = Sxx + x*x
Syy = Syy + y*y
Sxy = Sxy + x*y
det = Sx * Sx - Sxx * N # see the lecture
a,b = (Sy * Sx - Sxy * N)/det, (Sx * Sxy - Sxx * Sy)/det
meanerror = residual = residualx = 0.0
for x, y in zip(X, Y):
meanerror = meanerror + (y - Sy/N)**2
residual = residual + (y - a * x - b)**2
residualx = residualx + (x - Sx/N)**2
RR = 1 - residual/meanerror
# linear regression, a_0, a_1 => m = 1
m = 1
nu = N - (m+1)
sxy = np.sqrt(residual / nu)
# Var_a, Var_b = ss * N / det, ss * Sxx / det
Sa = sxy * np.sqrt(1/residualx)
Sb = sxy * np.sqrt(Sxx/(N*residualx))
# We work with t-distribution, ()
# t_{nu;\alpha/2} = t_{3,95} = 3.18
tvalue = t.ppf(1-(1-0.95)/2, nu)
print("Estimate: y = ax + b")
print("N = %d" % N)
print("Degrees of freedom $\\nu$ = %d " % nu)
print("a = %.2f $\\pm$ %.3f" % (a, tvalue*Sa/np.sqrt(N)))
print("b = %.2f $\\pm$ %.3f" % (b, tvalue*Sb/np.sqrt(N)))
print("R^2 = %.3f" % RR)
print("Syx = %.3f" % sxy)
print("y = %.2f x + %.2f $\\pm$ %.3f V" % (a, b, tvalue*sxy/np.sqrt(N)))
return a, b, RR, sxy
Estimate: y = ax + b N = 8 Degrees of freedom $\nu$ = 6 a = 1.21 $\pm$ 0.005 b = -0.03 $\pm$ 0.012 R^2 = 1.000 Syx = 0.026 y = 1.21 x + -0.03 $\pm$ 0.022 V (np.float64(1.2103157469888082), np.float64(-0.028846347359456247), np.float64(0.9998888247342179), np.float64(0.02584046039475594))
pl.loglog(x_1, y_1, 'o', x_1, x_1 ** 1.21 - 0.0288)
pl.xlabel('$x$ [cm]')
pl.ylabel('$y$ [V]')
pl.title('Logarithmic scale')
pl.legend(('$y$', '$x^{1.2}$'), loc='best')
pl.plot(x_1, y_1 - (x_1 ** 1.21 - 0.0288), 'o')
pl.xlabel('$x$ [cm]')
pl.ylabel('$y - y_c$ [V]')
# pl.legend(('$y$','$x^{1.2}$'),loc='best')
pl.title('Deviation plot')
