import numpy as np                   # numerical stuff
from matplotlib import pyplot as plt # plotting functions
plt.style.use('fivethirtyeight')

%matplotlib inline

# let's create some data
x = np.array([12.1,12.3,12.2,12.2,12.4,12.3,12.2,12.4,12.2,12.5])

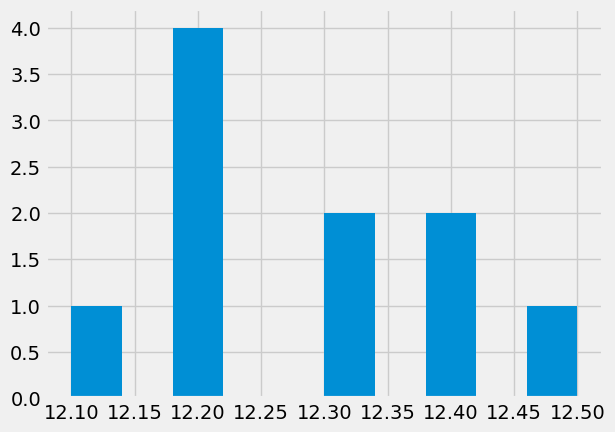

# create histogram using matplotlib and store the histogram output
x_modes = plt.hist(x) #note that we did not specify number of bins

# the output in x_modes

# which bin has most samples?
x_mode_ind = np.argmax(x_modes[0])

# how many counts in the top column?
x_mode_count = x_modes[0][x_mode_ind]

# what is the value of most frequent sample:
x_mode_val = x[x_mode_ind]


print(f"Data: {x}")
print(f"Mean: {np.mean(x):.2f}, Median: {np.median(x):.2f} STD: {np.std(x):.2f}")
print(f"Mode: {x_mode_val} appears {x_mode_count} times" )

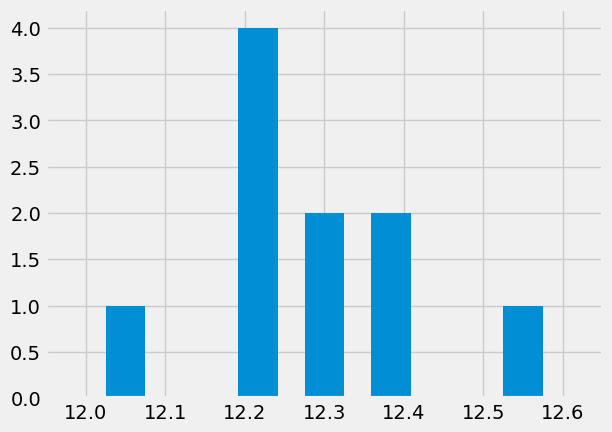

nbins = 7 # better then the default choice


hist_vals = np.zeros(nbins)
min_val = x.min() - 0.05
max_val = x.max() + 0.05
for d in x: # for every item
    # find which bin it belongs
    bin_number = int(nbins * ((d - min_val) / (max_val - min_val)))

    # add a counter
    hist_vals[bin_number] += 1

# let's plot some columns
plt.bar(np.linspace(min_val,max_val,nbins),hist_vals,width = 0.05)
plt.xlim([min_val-.1,max_val+.1]);

data = np.loadtxt('../data/thermocouples.dat',skiprows=1)
t = data[:,0]
T = data[:,1]

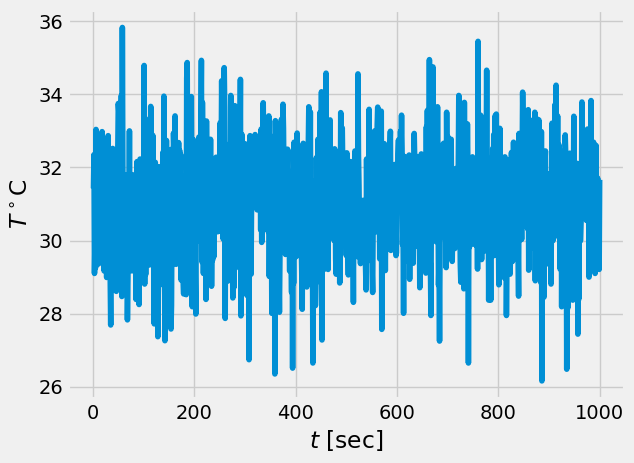

# visualize the data first
plt.plot(t,T)
plt.xlabel('$t$ [sec]')
plt.ylabel(r'$T^\circ$C')

# what are the recommended number of bins, see wikipedia

# for short samples
print(f" for short samples: {np.int(1 + 3.3*np.log10(len(t)))}")
print(f" another rule {np.int(1.87*(len(t)-1)**(0.4))}")


# for long samples
print(f" for long samples: {np.int(2*len(t)**(0.33))}")
print(f" for very long ones: {np.int(np.sqrt(len(t)))}")

J = 11 # we better use odd number of bins

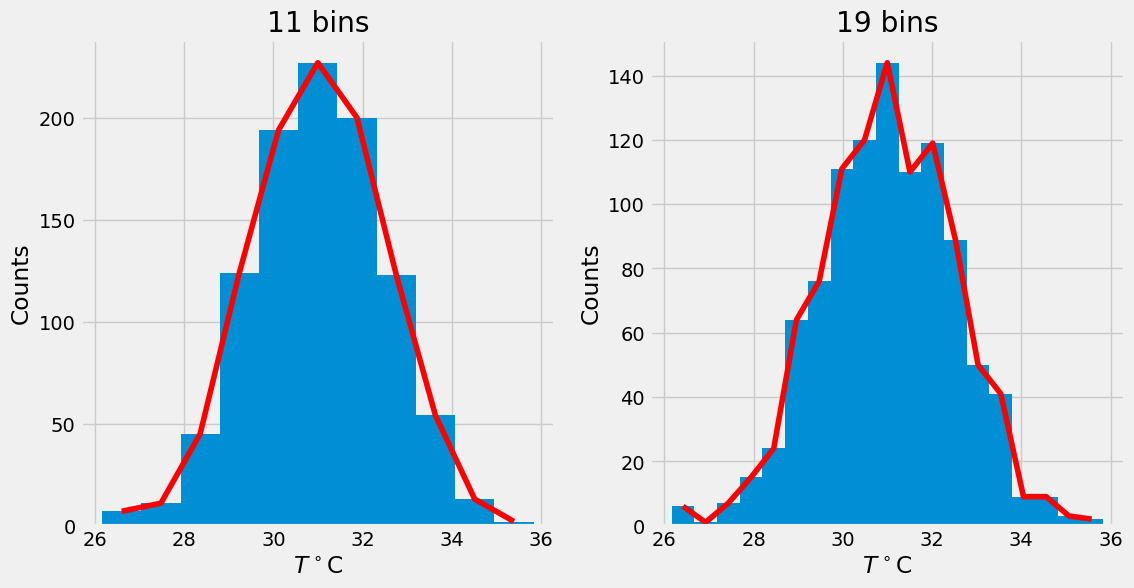

fig,ax = plt.subplots(1,2,figsize=(12,6))

n,bins,patches = ax[0].hist(T,J)
x = bins[:-1]+0.5*np.diff(bins)[0]

ax[0].plot(x,n,'r')
ax[0].set_xlabel(r'$T^\circ$C')
ax[0].set_ylabel('Counts')
ax[0].set_title('11 bins')

J = 19 # we better use odd number of bins

n,bins,patches = ax[1].hist(T,J)
x = bins[:-1]+0.5*np.diff(bins)[0]

ax[1].plot(x,n,'r')
ax[1].set_xlabel(r'$T^\circ$C')
ax[1].set_ylabel('Counts')
ax[1].set_title('19 bins')

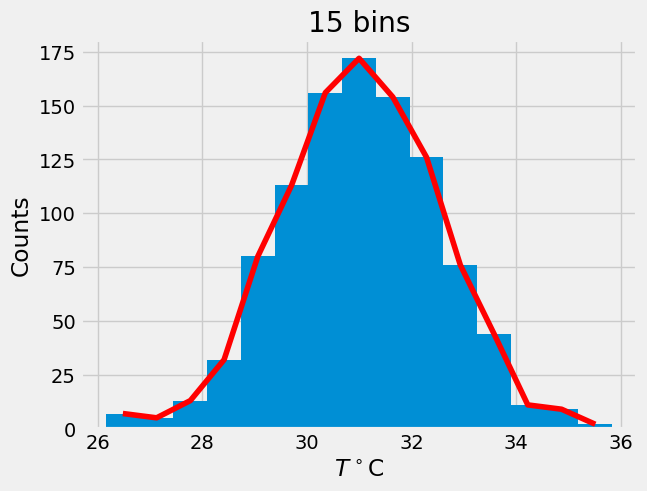

# trial and error

J = 15
n,bins,patches = plt.hist(T,J)
x = bins[:-1] + 0.5*np.diff(bins)[0]

plt.plot(x,n,'r')
plt.xlabel(r'$T^\circ$C')
plt.ylabel('Counts')
plt.title('15 bins');

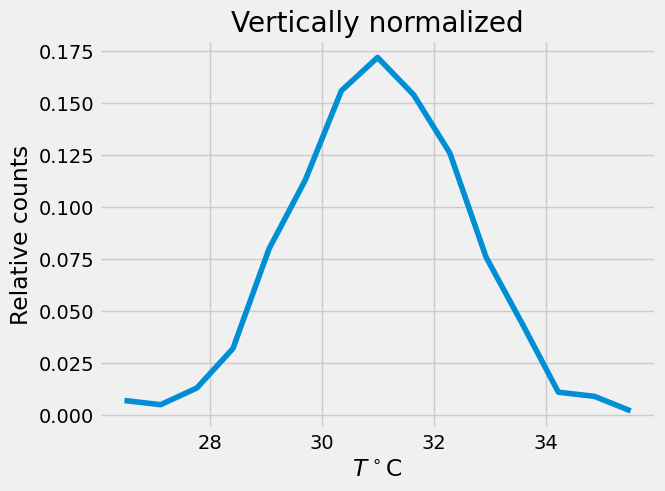

# vertical normalization
p = n/1000. # data.shape[0]

plt.plot(x,p)
plt.xlabel(r'$T^\circ$C')
plt.ylabel('Relative counts')
plt.title('Vertically normalized')

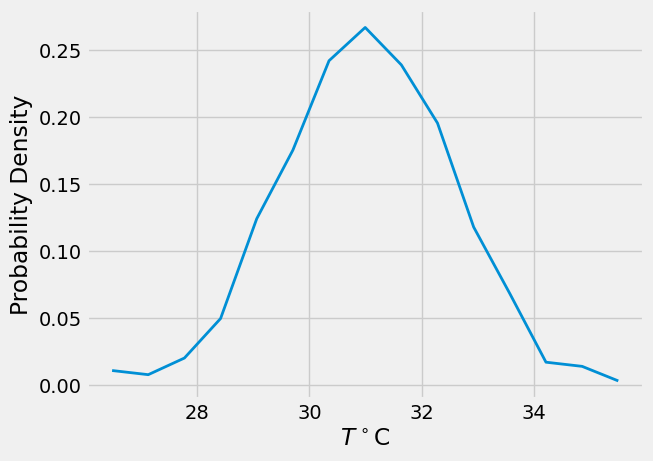

# area normalization
f = p/np.diff(x)[0]

plt.plot(x,f,lw=2)
plt.xlabel(r'$T^\circ$C')
plt.ylabel('Probability Density')

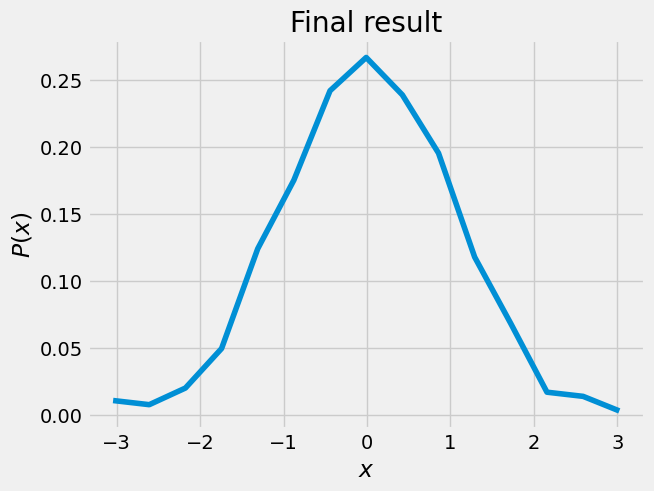

# horizontal normalization, transfer to Gaussian z
z = (x - T.mean())/T.std()

plt.plot(z,f)
plt.xlabel(r'$x$ ')
plt.ylabel(r'$P(x)$')
plt.title('Final result')

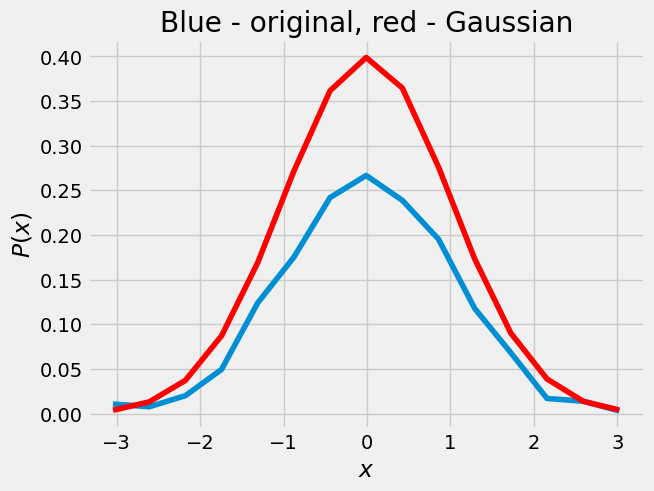

def gaussian(x,mu,sig):
    return 1/(sig*np.sqrt(2*np.pi))*np.exp(-((x-mu)**2)/(2*sig**2))

plt.plot(z,f,z,gaussian(z,0,1),'r')
plt.xlabel(r'$x$')
plt.ylabel(r'$P(x)$')
plt.title('Blue - original, red - Gaussian')

import scipy.stats as st

print(("T skewness = %.3f, kurtosis = %.3f" % (st.skew(T), st.kurtosis(T))))
tmp = np.random.randn(1000,1)
print(("Normal distribution skewness = %.3f, kurtosis = %.3f" % (st.skew(tmp), st.kurtosis(tmp))))

# area under the curve
print(("Area under the curve = %f " % trapz(f,x)))

data = np.array([0.98, 1.07, 0.86, 1.16, 0.96, 0.68, 1.34, 1.04, 1.21, 0.86, 1.02, 1.26, \
1.08, 1.02, 0.94, 1.11, 0.99, 0.78, 1.06, 0.96])

# import matplotlib.pyplot as plt
plt.plot(data,'o')
plt.xlabel('$i$')
plt.ylabel('$x_i$');

np.mean(data), np.std(data), data.shape[0], np.min(data), np.max(data)

n = data.shape[0]
K = np.int(1.87 * (n - 1)**0.4 + 1)
print(f"best number of bins is {K}")

bins = np.arange(0.65, 1.45, 0.1)
print(bins)

# let's see the histogram
plt.hist(data,bins=bins,width=0.07)

# calculate probability
from math import erf, sqrt
x1 = 0.75
x2 = 0.85

mu = data.mean()
sigma = data.std()

# probability from Z=0 to lower bound
def probability(x, mu, sigma):
    ''' Probability is the area under the Gaussian curve which is identical to the
    cumulative density function value '''
    return 0.5 * erf( (x-mu) / (sigma*sqrt(2.)) )

def expected(lower,upper,mu,sigma,n):
    ''' Expected number of samples in some bin is the number of samples times the
    probability of a variable to be between the lower and upper edge of the bin  '''
    # return np.abs(n * (probability(lower,mu,sigma) - probability(upper,mu,sigma)))
    return np.abs(n*(stats.norm(mu, sigma).cdf(lower) - stats.norm(mu, sigma).cdf(upper)))


print(expected(0.75,0.85,mu,sigma,20))

oh = np.histogram(data,bins=bins)

x = []
y = []

for i in range(len(bins)-1):
    x.append((oh[1][i]+oh[1][i+1])/2) # middle of the bin
    y.append(expected(bins[i],bins[i+1],mu,sigma,n))

chisq = []
for a,b in zip(oh[0],y):
    chisq.append( (a-b)**2/b )

plt.bar(x,y,width=0.02,color='r',alpha=.8)
plt.bar(x,oh[0],width=.05,alpha=.5)
plt.legend(('$E_i$','$O_i$'))

print(f"chi square = {np.sum(chisq)}")

# degrees of freedom = K.- 2 because we used mean and std:
df = K - 2

pval = 1 - stats.chi2.cdf(np.sum(chisq), K-2);
print(f'Confidence level is {(pval*100)} percent')
