How to estimate the uncertainty of a slope for static calibration or regression - Mechanical Engineering Metrology and Measurements

# data of resistance measurements: voltage vs current

import numpy as np
import matplotlib.pyplot as plt

# data
U = np.array([4.5, 6, 7, 8, 9, 10]) # voltage in V
I = np.array([109.5, 115.3, 129.2, 134.8, 142.1, 144.6]) # current in A

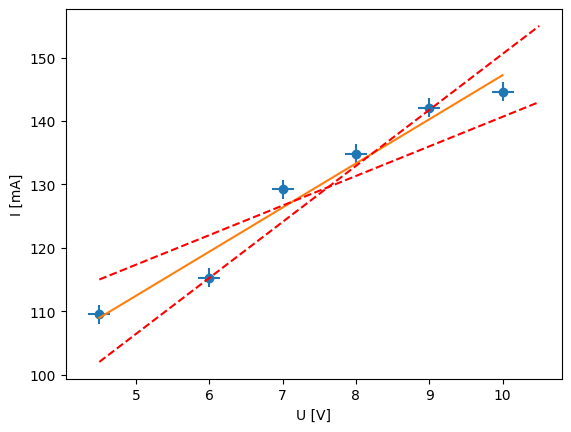

plt.plot(U, I, 'o', label='data')
plt.errorbar(U, I, xerr=0.15, yerr=1.5, fmt='none')

plt.plot(np.unique(U), np.poly1d(np.polyfit(U, I, 1))(np.unique(U)), label='fit')
plt.plot([4.5, 10.5], [102,155], 'r--', label='linear fit')
plt.plot([4.5, 10.5], [115,143], 'r--', label='linear fit')
plt.xlabel('U [V]')
plt.ylabel('I [mA]')

The method:¶

Draw the best line using polynomial regression, polyfit
Using points and error bars draw the minimum and maximum slopes
Get static sensitivity, i.e. slope uncertainty as the half the difference between the max and min slopes

for instance:¶

$m = \frac{147 - 107}{10 - 4.5} = 7.27$ mA/V

$m = \frac{145 - 115}{10.5 - 4.5} = 5.45$ mA/V

$m = \frac{152 - 106}{10 - 5} = 9.20$ mA/V

Uncertainty¶

$\Delta m = (9.20 - 5.45)/2 = 1.875$ mA/V

Use two standard figures and the correct statement:¶

The slope is has best estimate of $7.3 \pm 1.9$ mA/V
