Using FFT the right way to find the correct spectrum - Mechanical Engineering Metrology and Measurements

from numpy import *
from numpy.fft import fft
import matplotlib.pyplot as plt
%matplotlib inline

# redefine default figure size and fonts
import matplotlib as mpl
mpl.rc('font', size=16)
mpl.rc('figure',figsize=(12,10))
mpl.rc('lines', linewidth=1, color='lightblue',linestyle=':',marker='o')

import sys
sys.path.append('../scripts')
from signal_processing import create_signal, spectrum

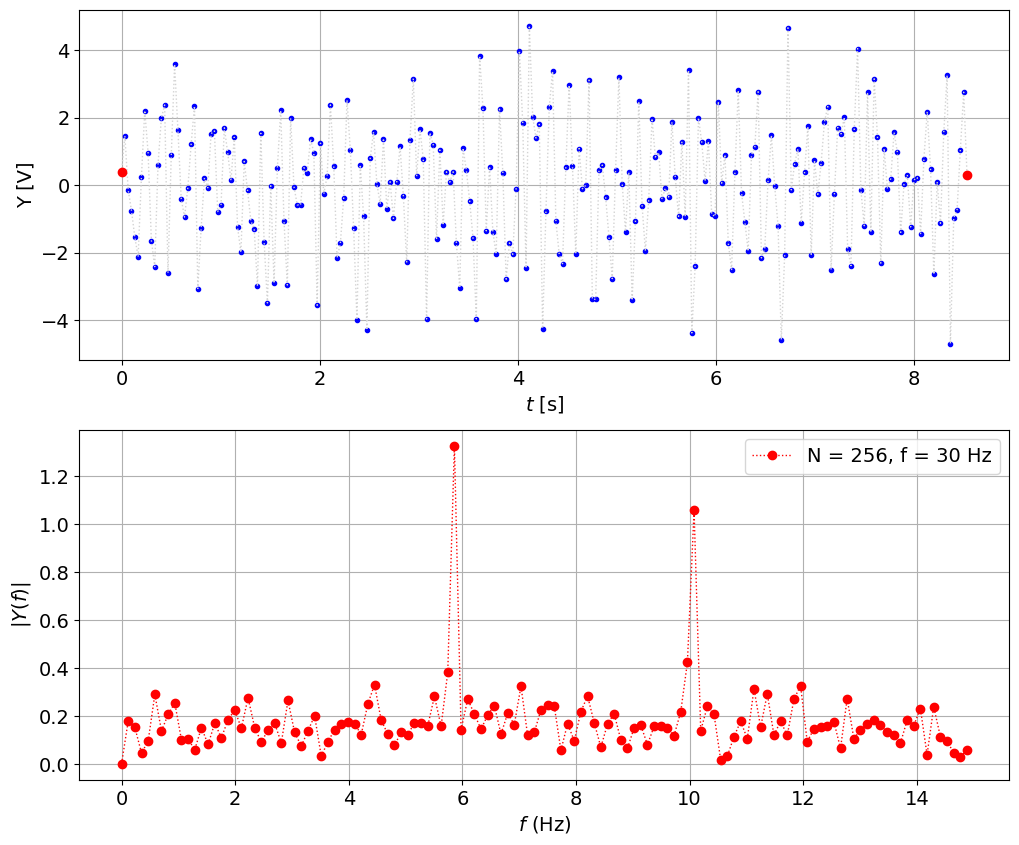

fs = 30 # sampling frequency, Hz
N = 256 # number of sampling points

t,y = create_signal(fs,N)

def plot_signal_with_fft(t,y,fs,N):
    """ plots a signal in time domain and its spectrum using
    sampling frequency fs and number of points N
    """

    T = N/fs # sampling period
    y -= y.mean() # remove DC
    frq,Y = spectrum(y,fs) # FFT(sampled signal)

    # Plot
    fig, ax = plt.subplots(2,1)
    ax[0].plot(t,y,'b.')
    ax[0].plot(t,y,':',color='lightgray')
    ax[0].set_xlabel('$t$ [s]')
    ax[0].set_ylabel('Y [V]')
    ax[0].plot(t[0],y[0],'ro')
    ax[0].plot(t[-1],y[-1],'ro')
    ax[0].grid()


    ax[1].plot(frq,abs(Y),'r') # plotting the spectrum
    ax[1].set_xlabel('$f$ (Hz)')
    ax[1].set_ylabel('$|Y(f)|$')
    lgnd = str(r'N = %d, f = %d Hz' % (N,fs))
    ax[1].legend([lgnd],loc='best')
    ax[1].grid()

### Note we remove DC right before the spectrum

plot_signal_with_fft(t,y,fs,N)

fs = 66 # sampling frequency, Hz
N = 256 # number of sampling points

t,y = create_signal(fs,N)
plot_signal_with_fft(t,y,fs,N)

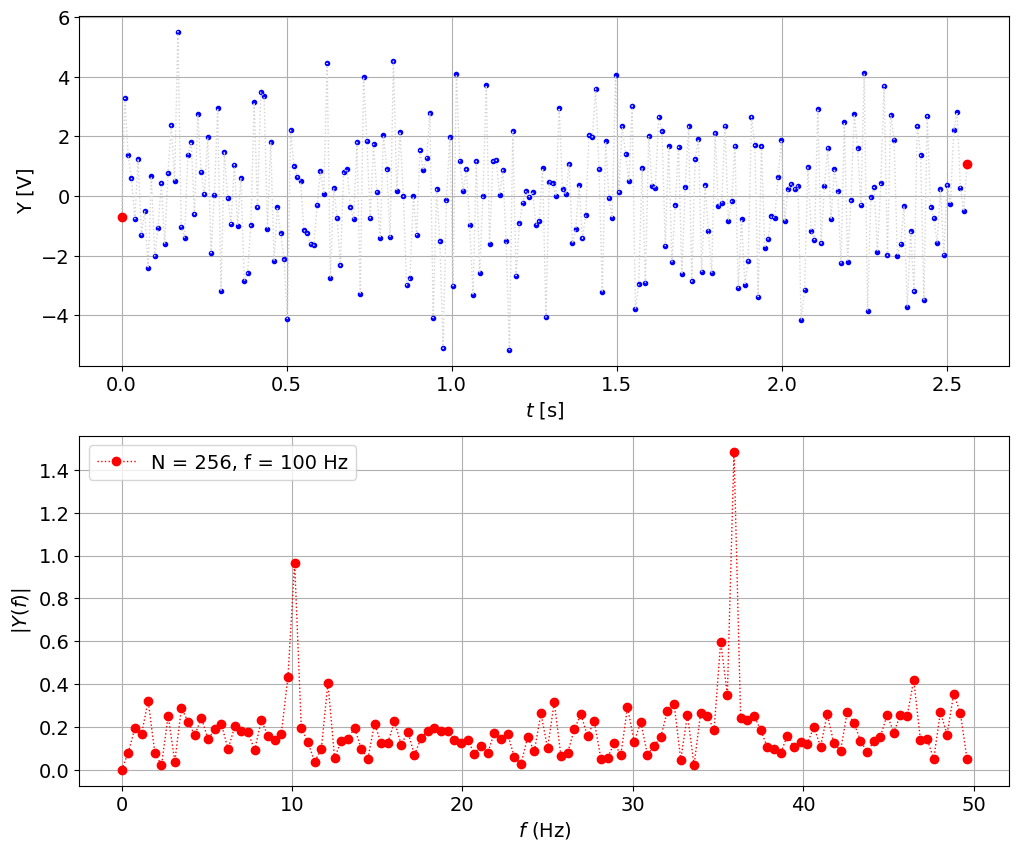

fs = 100 # sampling frequency, Hz
N = 256 # number of sampling points

t,y = create_signal(fs,N)
plot_signal_with_fft(t,y,fs,N)

fs = 500 # sampling frequency, Hz
N = 256 # number of sampling points

t,y = create_signal(fs,N)
plot_signal_with_fft(t,y,fs,N)

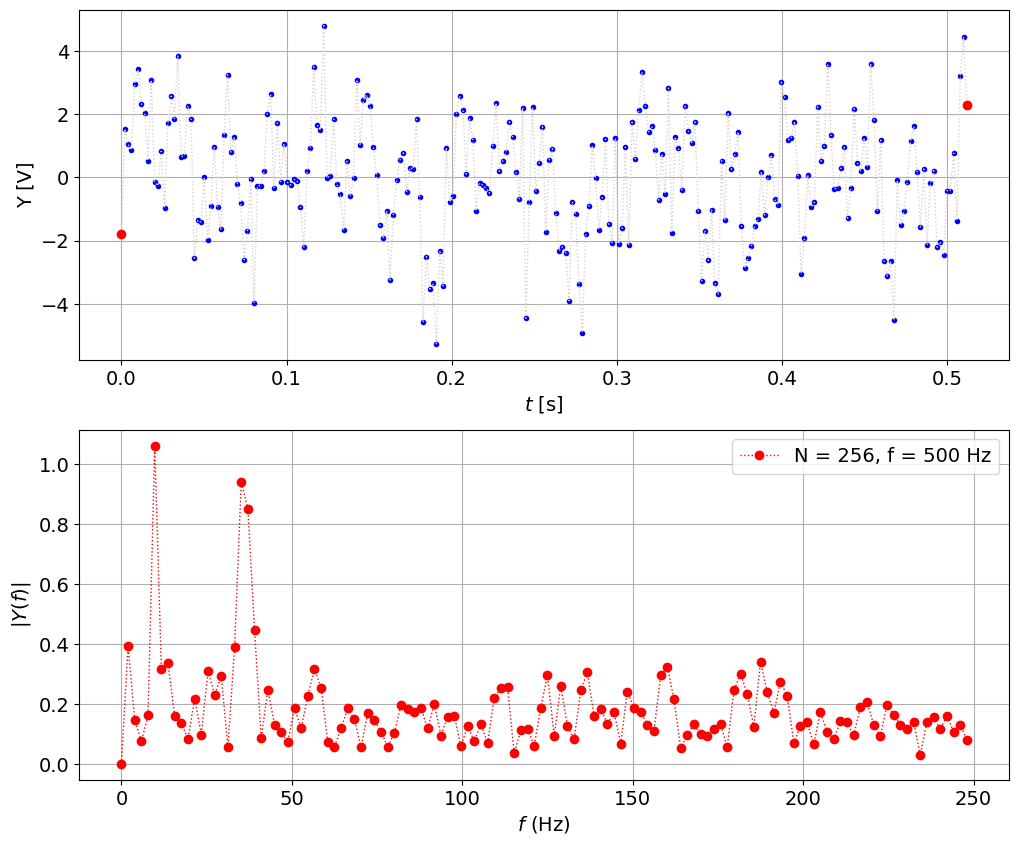

Very poor frequency resolution, $\Delta f = 1/T = fs/N = 500 / 256 = 1.95 Hz$ versus $\Delta f = 100 / 256 = 0.39 Hz$
peaks are at 9.76 Hz and 35.2 Hz
wasting a lot of frequency axis above 2 * 35.7

So the problem is still there:¶

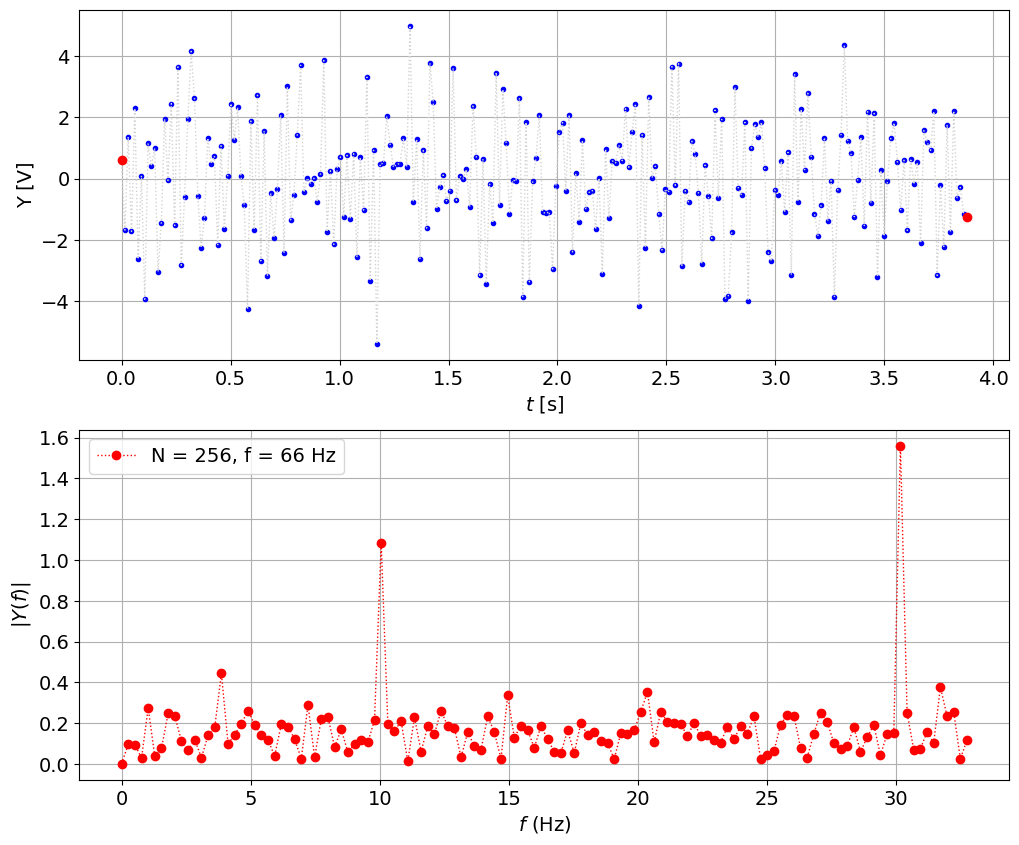

the peak is now shifted to 35.5 Hz, let’s see: when we sampled at 30 we got aliased 35.5 - 30 = 5.5 Hz. Seems correct, when we sampled at 66 it was above 2/3f but below 2f, so 66 - 35.5 = 30.5 Hz, also seem to fit. So now we have explained (!) the previous results and we believe that hte signal has 10 Hz and 35.5 Hz (approximately) and 100 Hz is good enough but we could improve it by going slightly above Nyquist 2*35.5 = 71 Hz, and also try to fix the number of points such that we get integer number of periods. It’s imposible since we have two frequencies, but at least we can try to get it close enough: 1/10 = 0.1 sec so we could do 256 * 0.1 = 25.6 Hz or X times that = 25.6 * 3 = 102.4 - could be too close let’s try:

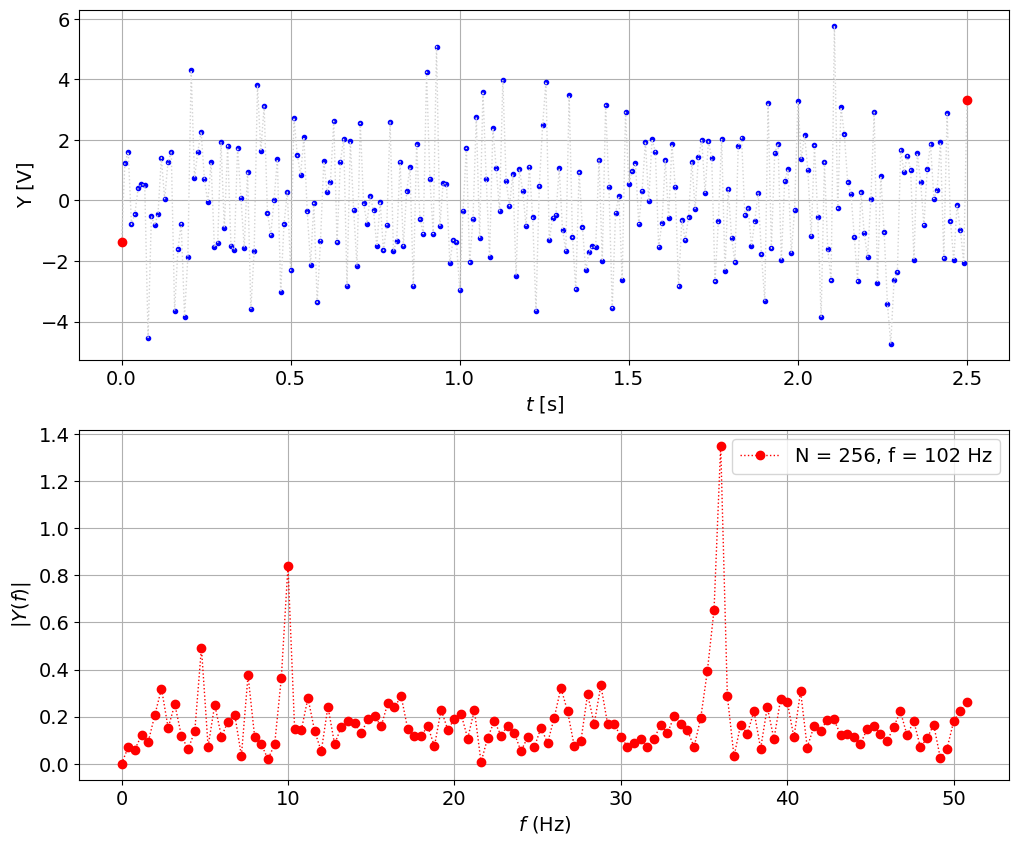

fs = 102.4 # sampling frequency, Hz
N = 256 # number of sampling points
t,y = create_signal(fs,N)
plot_signal_with_fft(t,y,fs,N)

Then the same principle to get better 35.5 Hz 1/35.5 * 256 = 7.21 * 15 = 108.16 Hz

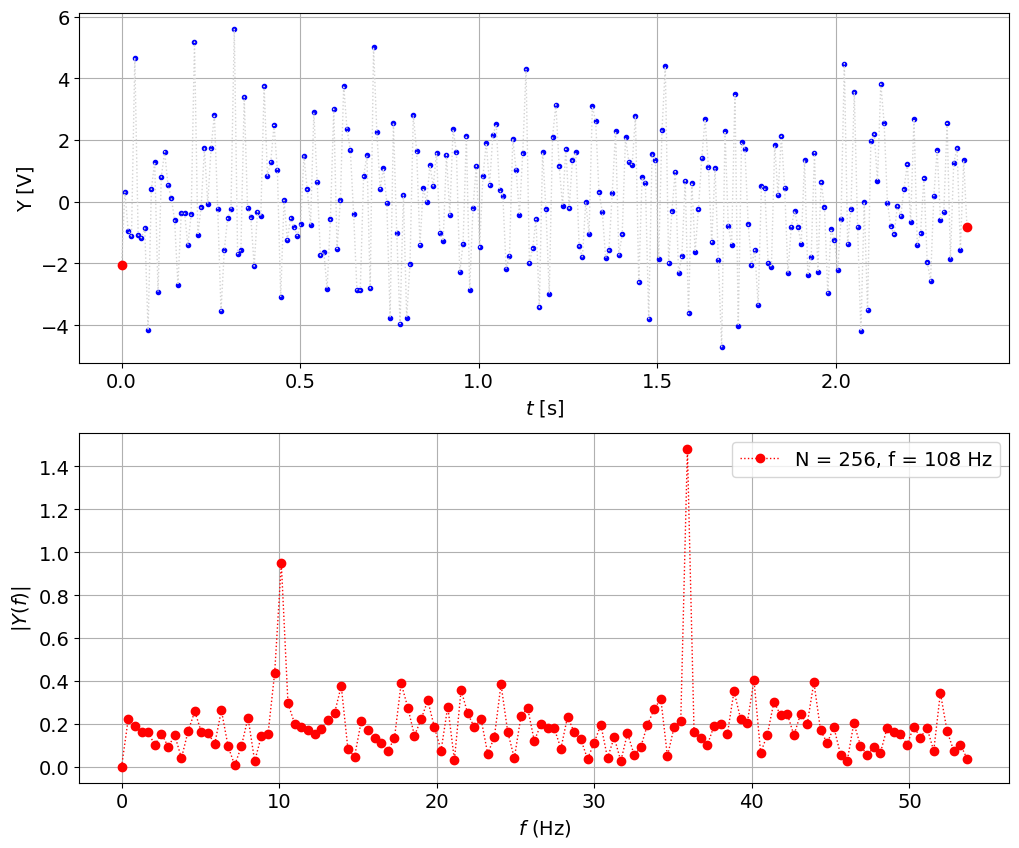

fs = 108.16 # sampling frequency, Hz
N = 256 # number of sampling points
t,y = create_signal(fs,N)
plot_signal_with_fft(t,y,fs,N)

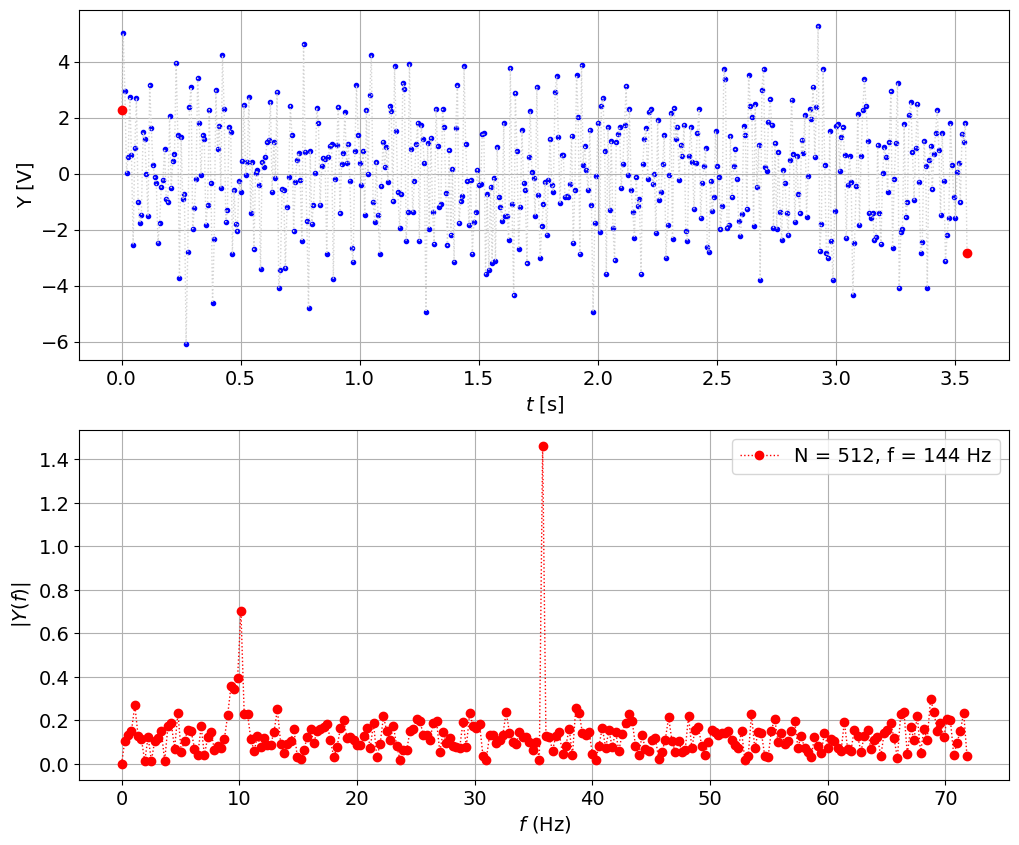

fs = 144.22 # sampling frequency, Hz
N = 512 # number of sampling points
t,y = create_signal(fs,N)
plot_signal_with_fft(t,y,fs,N)

Use windowing or low-pass filtering¶

from scipy.signal import hann  # Hanning window

# we made a mistake with the DC

DC = y.mean()
y -= DC

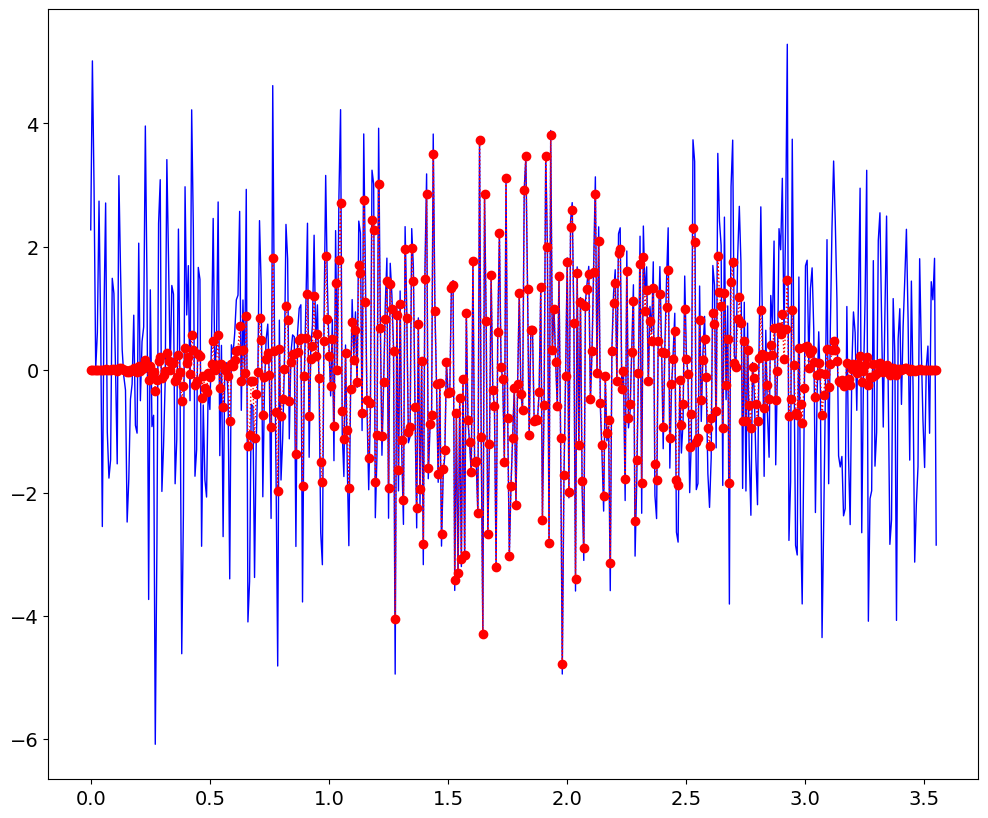

yh = y*hann(len(y))

plt.plot(t,y,'b-',t,yh,'r')

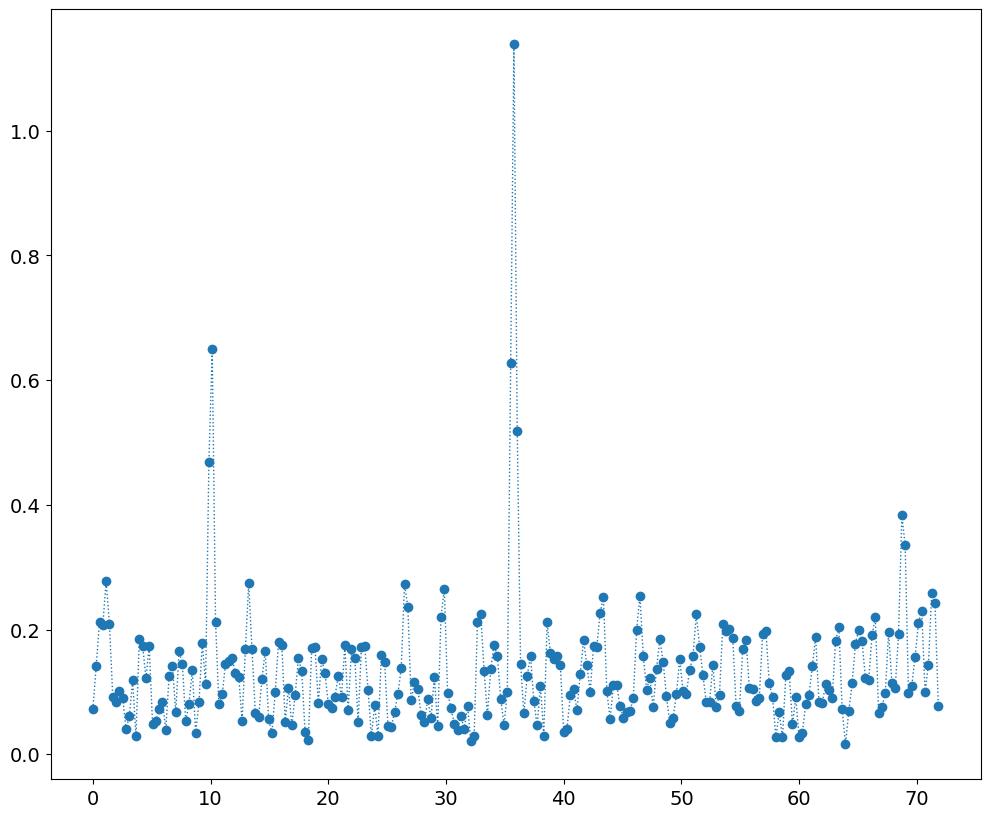

frq,Y = spectrum(yh,fs)

Y = abs(Y)*sqrt(8./3.)# /(N/2)

plt.plot(frq,Y)

let’s try to reconstruct¶

a1,f1 = Y.max(),frq[Y.argmax()]
print (a1,f1)
b = Y.copy()
b[:Y.argmax()+10] = 0 # remove the first peak
a2,f2 = b.max(),frq[b.argmax()]
print (a2,f2)

1.1387020742945604 35.7733203125
0.3830241283109943 68.72984375

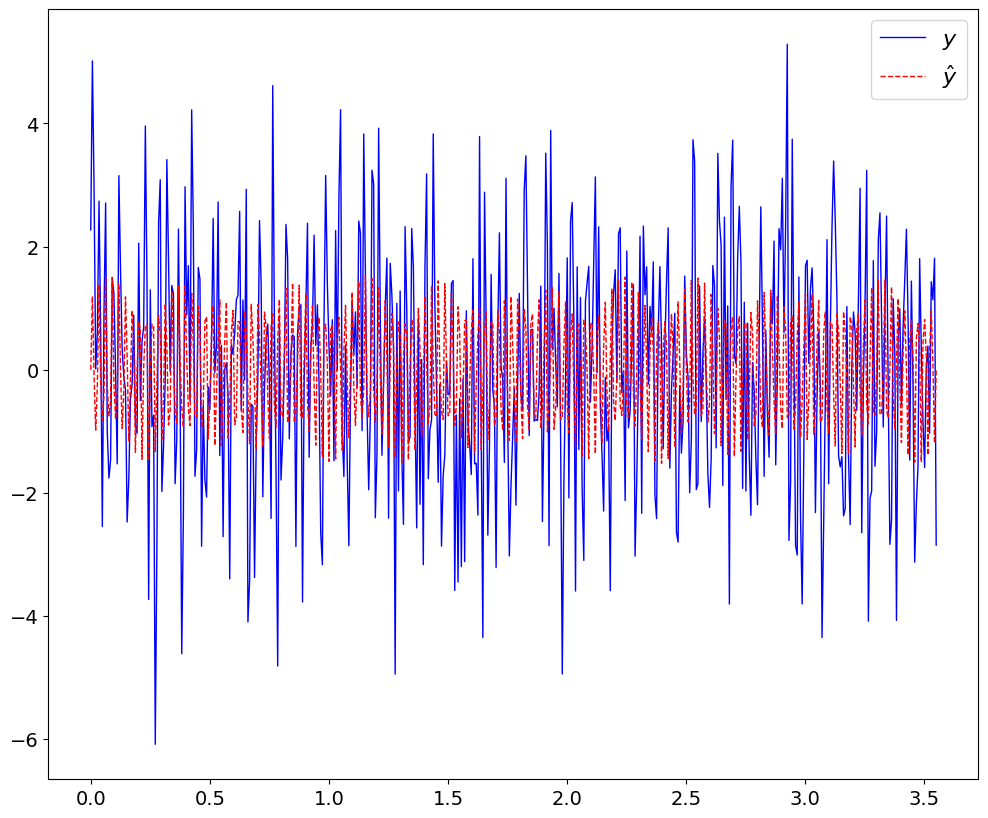

yhat = DC + a1*sin(2*pi*f1*t) + a2*sin(2*pi*f2*t)
plt.plot(t,y+DC,'b-',t,yhat,'r--');
plt.legend(('$y$','$\hat{y}$'),fontsize=16);
